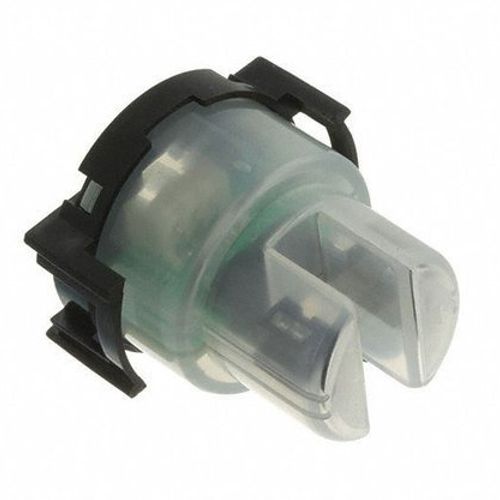

سنسور کدورت آب TSD-10
سنسور کدورت آب
SPECIFICATION
Thermometrics Turbidity Sensor TSD-10 measures the turbidity (amount of suspended particles) of the wash water in washing machines and dishwashers. An optical sensor for washing machines is a measuring product for a turbid water density or an extraneous matter concentration using the refraction of wavelength between photo transistor and diode. By using an optical transistor and optical diodes, an optical washing machine sensor measures the amount of light coming from the source of the light to the light receiver, in order to calculate water turbidity.
- Rated Voltage DC 5V (between No #1 and Ground)
- Voltage Differential 3.0V ± 10%
- Test Method After testing voltage in water (0 NTU), voltage test in water (4000 NTU)
- (Turbidity level Calibration -> Master NTU standard liquid)
- (Voltage between No #2 pin and Ground)
- Operating Temperature Range -10°C ~ 90°C
- Storage Temperature Range -20°C~ 90°C
- Rated Current Max. 30 mA
- Insulation Resistance Min 100 MΩ by 500V DC
APPLICATION
- Detecting the turbidity degree of water
- Washing Machines
- Dishwashers
