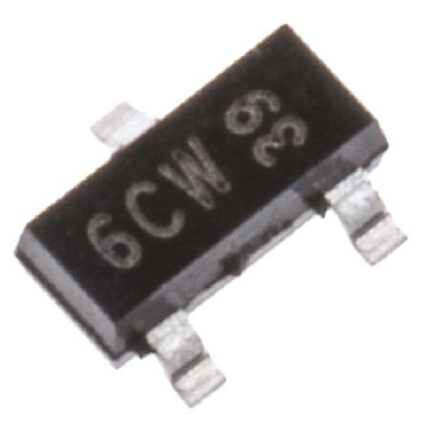

ترانزیستور BC817
ترانزیستور BC817
SPECIFCATIONS
- Mounting Style : SMD/SMT
- Package / Case : SOT-23-3
- Transistor Polarity : NPN
- Configuration : Single
- Collector- Emitter Voltage VCEO Max : 45 V
- Collector- Base Voltage VCBO : 50 V
- Emitter- Base Voltage VEBO : 5 V
- Collector-Emitter Saturation Voltage : 700 mV
- Maximum DC Collector Current : 1 A
ترانزیستور BU407
ترانزیستور BU407
کپیDescription:
- Product Category: Bipolar Transistors - BJT
- Mounting Style: Through Hole
- Package / Case: TO-220-3
- Transistor Polarity: NPN
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 150 V
- Collector- Base Voltage VCBO: 330 V
- Emitter- Base Voltage VEBO: 6 V
- Maximum DC Collector Current: 7 A
- Pd - Power Dissipation: 60 W
ترانزیستور SS8050
ترانزیستور SS8050
DIP / SMDFEATURES SMD
- Power Dissipation PCM : 0.3W
- Collector Current ICM : 1.5A
- Collector - Base Voltage V(BR)CBO : 40V
- Operating & Storage junction temperature TJ, TSTG : -55℃ ~ +150℃
FEATURES DIP
- 2W Output Amplifier of Portable Radios in Class B Push-pull Operation.
- Complimentary to SS8550
- Collector Current: IC=1.5A
- Collector Power Dissipation: PC=2W (TC=25°C)
ترانزیستور TIP41C
ترانزیستور TIP42C
ترانزیستور TIP42C
Product Measurements by Type
- Base-emitter Saturation Voltage (VBE(sat)) : -2.0 V
- Base Current (IB) : -2 A
- Collector-base Voltage (VCBO) : -100 V
- Collector-emitter Saturation Voltage (VCE(sat)) : -1.5 V
- Collector-emitter Sustaining Voltage (VCEO(sus)) : -100 V
- Collector-emitter Voltage (VCEO) : -100 V
- Collector Current (IC) : -6 A
