در حال نمایش 8 نتیجه

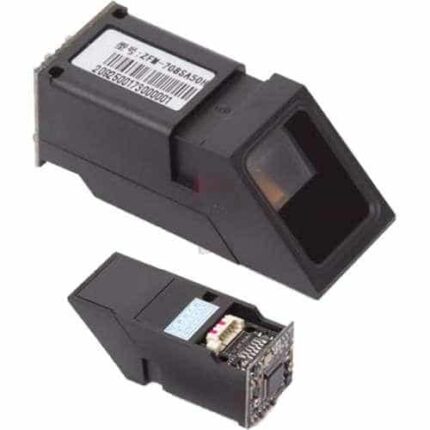

سنسور اثر انگشت ZFM-70

۱,۵۲۹,۰۰۰ تومان
سنسور اثر انگشت ZFM-70

Specification

  • DC3.8V-7.0V Interface UART (TTL logical level )
  • Working current Typical:<65mA Peak:<95mA
  • Matching Mode1:1 and1:N
  • Baud rate(9600*N)bps , N=1~12(default N=6)
  • Character file size 256 bytes
  • Image acquiring time<1s

سنسور اثر انگشت نوری AS608

۷۵۴,۰۰۰ تومان
سنسور اثر انگشت نوری AS608

Specification

  • Resolution: 500dpi
  • Supply current: <60mA
  • Supply voltage: 3.3V
  • Fingerprint image entry time: <1.0 seconds
  • Peak current: <60mA
  • Window area: 15.3x18.2MM
  • Communication Interface: USB/UART

سنسور اثر انگشت نوری R305 با رابط TTL

۱,۴۹۶,۰۰۰ تومان
سنسور اثر انگشت نوری R305 با رابط TTL

Features of Finger Print Sensor (R305) -TTL UART:

  • Power DC : 3.6V-6.0V
  • Interface : UART (TTL logical level)/ USB 1.1
  • Working current : 100mA
  • Peak Current : 150mA
  • Matching Mode: 1:1 and 1:

ماژول اثر انگشت R308

۷۵۹,۰۰۰ تومان
ماژول اثر انگشت R308

Specifications

  • Type: Optical
  • Interface: UART(TTL logical level)
  • Resolution: 500 DPI
  • Work Current: Typical ≤50 mA, Peak 120mA
  • Voltage: DC 4.2-6.0V
  • Fingerprint capacity: 500

ماژول اثر انگشت ZFM60

۱,۵۴۰,۰۰۰ تومان
ماژول اثر انگشت ZFM60

Specification

  • Power supply voltage: DC 3.8 ~ 7.0V
  • Supply current: working current: <65mA
  • Peak current: <95mA
  • Window area: 14.5 × 19.4mm
  • Profile: 256 bytes
  • Template file: 512 bytes
  • storage capacity: 1000

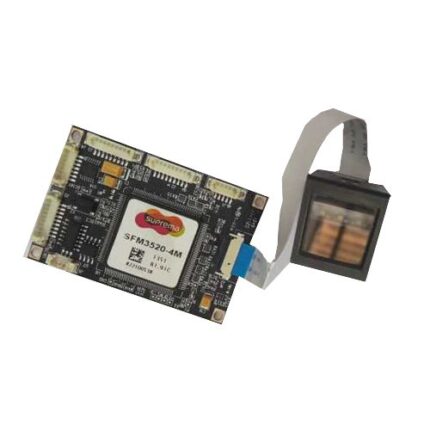

ماژول اسکنر اثر انگشت سوپریما SFM3520-4M

۱,۸۳۲,۰۰۰ تومان
ماژول اسکنر اثر انگشت سوپریما SFM3520-4M
کارکرده REFER

Features

  • High speed fingerprint verification
  • Compact size
  • Low power consumption
  • Fast power on time
  • Supports various communication interfaces
  • Supports fingerprint data encryption
  • Supports various fingerprint sensors
  • Highly configurable I/O signals
  • Operates with a single 5.0v dc supply

ماژول اسکنر اثر انگشت سوپریما SFM5520-4M

۲,۹۳۴,۰۰۰ تومان
ماژول اسکنر اثر انگشت سوپریما SFM5520-4M
کارکرده. Refer

Specification

  • Sensor Option : Optical,Capacitive
  • Flash Memory : 4MB
  • Serial : CMOS level up to 460800 bps
  • External I/O : 3x Digital Inputs, 3x Digital Outputs, 3x LED Outputs
  • Hardware : Supply Voltage : 5 VDC Regulated

ماژول سنسور اثرانگشت R302

۸۲۵,۰۰۰ تومان
ماژول سنسور اثرانگشت R302

Specification:

  • Fingerprint sensor : Thaiwan
  • Interface : USB 2.0 and RS232 (TTL)
  • Communications baud rate (UART) : (9600 × N) bps where N = 1 ~ 12 (default N = 6, ie 57600bps)
  • Dimension : 45*32mm
  • Fingerprint reader module size : 33.4 * 20.4(mm)
  • Effective collection area : 8 * 8 (mm)
  • ScanningSpeed : < 0.2 second
  • Verification Speed : < 0.3 second
  • Matching Method : 1:1; 1:N
  • Resolution : 508 DPI
  • Voltage : DC 4.2-6.0V
