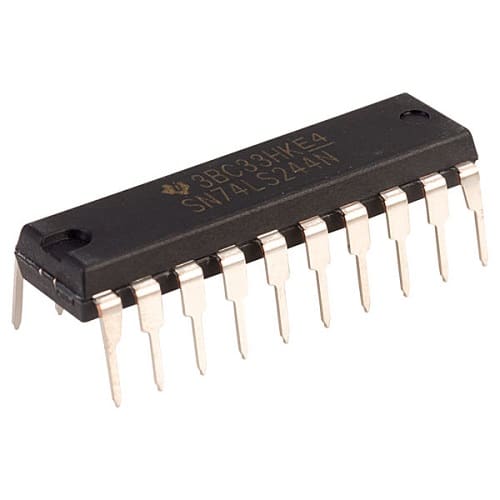

بافر و لاین درایور SN74LS244

بافر و لاین درایور SN74LS244

بافر و لاین درایور SN74LS244

• دیتاشیت

SPECIFCATIONS

• Number of input lines : 8 input
• Number of output lines : 8 output
• Polarity : Non-inverting
• High level output voltage : – 15 mA
• Low-level output voltage : 24 mA
• Quiescent current : 27 mA
• Supply voltage – Max . : 5.25 V.
• Supply voltage – min . : 4.75 V
• Operating supply current : 46 uA
• Mounting type : Through hole
• Packaging / housing : PDIP-20
• Function : Buffer / Line Driver
• Height : 4.57 mm
• Length : 24.33 mm
• Operating temperature range : 0 C to + 70 C
• Type of output : 3-state
• Technology : Bipolar
• Broad : 6.35 mm
• Logic family : LS
• Logic type : Bipolar
• Amount of channels : 8th
• Supply Current – Max . : 46 mA
• Input signal type : Single ended
• Operating supply voltage : 5 V
• Product type : Buffers & Line Drivers
• Transmission delay time : 18 ns at 5 V
