ترموستات ديجيتال دما روپنلي XY-WT01

ترموستات ديجيتال دما روپنلي XY-WT01

ترموستات ديجيتال دما روپنلي

دیتاشیت

Specifications

• Condition: 100% Brand new and high quality
• Material: ABS + Metal
• Color: Black

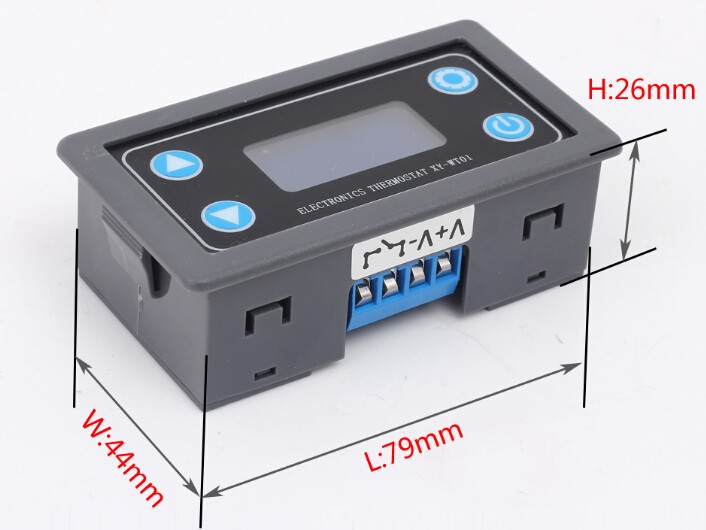

• Size: around 79*44*26mm

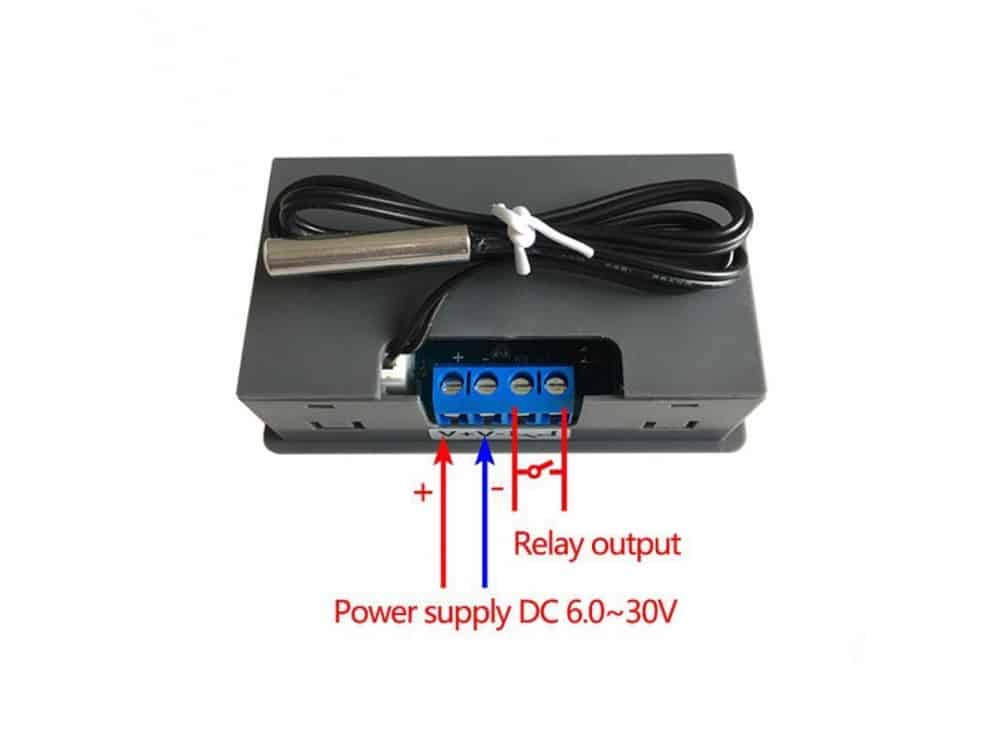

• Working voltage: DC 6V-30V
• Test temperature: -50~110℃
• Control precision:0.1℃
• Sensor length: 0.5 meter
• Temperature Sensor:NTC-10K B3950
• Control Load Current:10A(Max)
• LCD refresh rate:0.5 second

Additional Features:

• Set or read data by UART: The parameters such as start temperature, stop temperature, temperature correction, etc. can be set through the UART.
• Temperature real-time reporting: The module transmits the detected temperature to the terminal through the UART at intervals of 1s to facilitate data acquisition if the temperature reporting function is turned on.
• Relay enable (default on): If the relay enable is turned off, the relay remains off. That is, the output state will never change, no matter what the measured temperature is.
• Reset: Press button ’STOP’ and ’SET’ for more than 3second at the same time to restore the factory settings.
