نمايشگر 9 اينچ AT090TN12 V.3

نمايشگر 9 اينچ AT090TN12 V.3

نمايشگر 9 اينچ AT090TN12 V.3

Description

• Brand : INNOLUX
• Diagonal Size : 9.0″
• Panel Type : Graphic Display, TFT LCD, LCM
• Resolution : 800(RGB)×480, WVGA 104PPI
• Orientation : Landscape type
• Display Area : 198(W)×111.696(H) mm

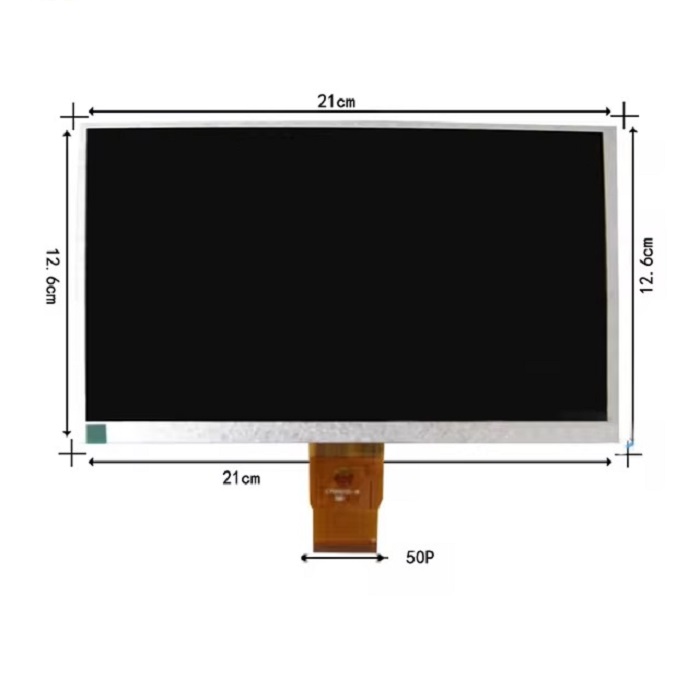

• Outline Size : 211.1(W)×126.5(H)×6.1(D) mm
• Display Mode : TN, Normally White, Transmissive
• Viewing Angle : 70/70/50/70 (Typ.)(CR≥10)
• Luminance : 250 cd/m² (Typ.)
• Color Gamut : 262K/16.2M 50% NTSC
• Contrast Ratio : 500 : 1 (Typ.) (TM)
• Interface : TTL (1 ch, 6/8-bit), 50pins FPC
• Response : 10/15 (Typ.)(Tr/Td) ms
• Operating Temperature : -20 ~ 70 °C
• Application : Digital Photo Frame,DVD Player
