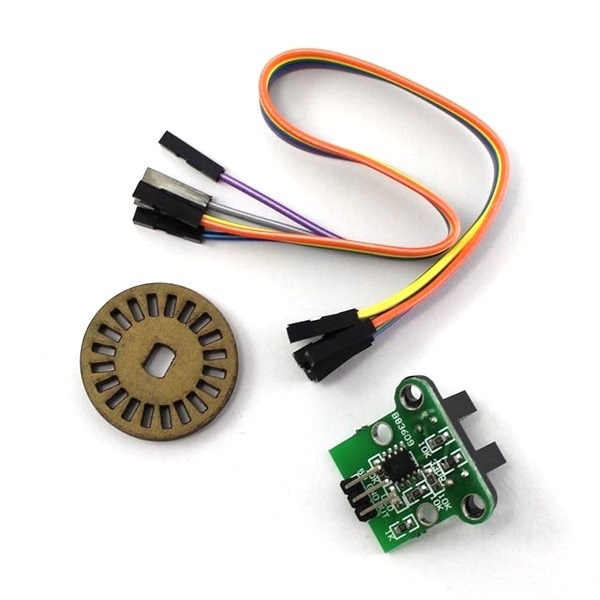

انکدر نوری HC-020K
انکدر نوری HC-020K
Features:
HC-020K speed measuring sensor is a wide voltage, high resolution, short response time, and the switch output speed measurement module. It can test motor’s rotational speed with black encoder(measured the inner diameter of D type encoder that provided is 4mm, can be used for motor shart w/ 4mm diameter, which is TT motor we matched, yellow shell and white axis).
Specifications:
- Module Working Voltage: 4.5-5.5V.
- Launch Tube Pressure Drop: VF=1.6V.
- Launch Tube Current: If<20mA.
- Signal output: A, B two lines; TT power level.
- Resolution: 0.01mm.
- Measurement frequency: 100 KHz.
- Color: Green + black.
- Disc diameter: 24mm.
- Inner Disc Diameter: 4mm.
- Encoder resolution: 20 lines.
- Speed measuring sensor configuration: measure line 1 motor speed.
- Application: For experiment.
