رله 12 ولت میلون 5 پایه 10 آمپر NT73-2C-10

رله 12 ولت میلون 5 پایه 10 آمپر NT73-2C-10

رله 12 ولت میلون 5 پایه 10 آمپر

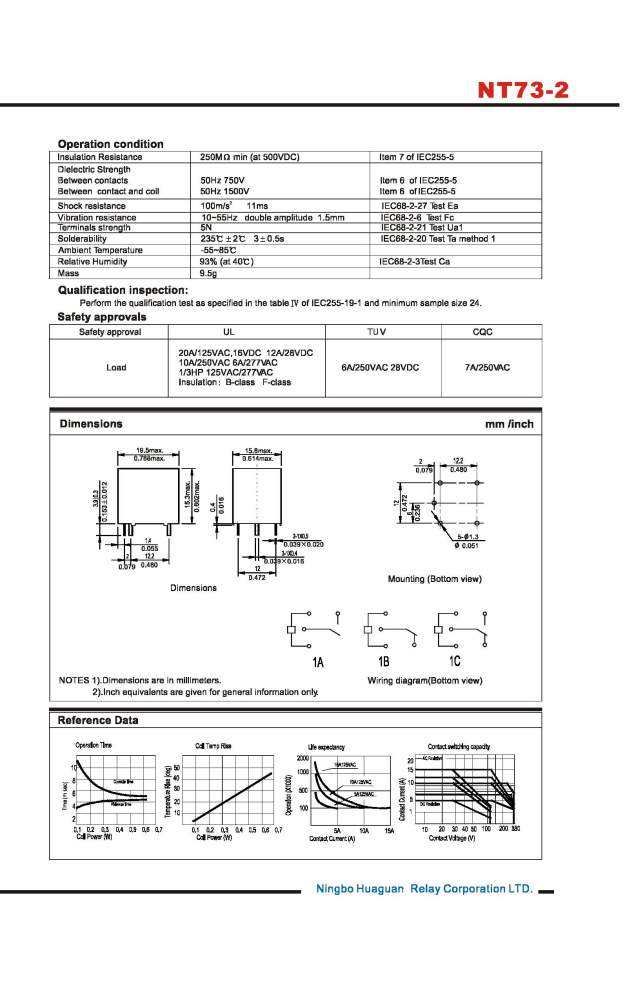

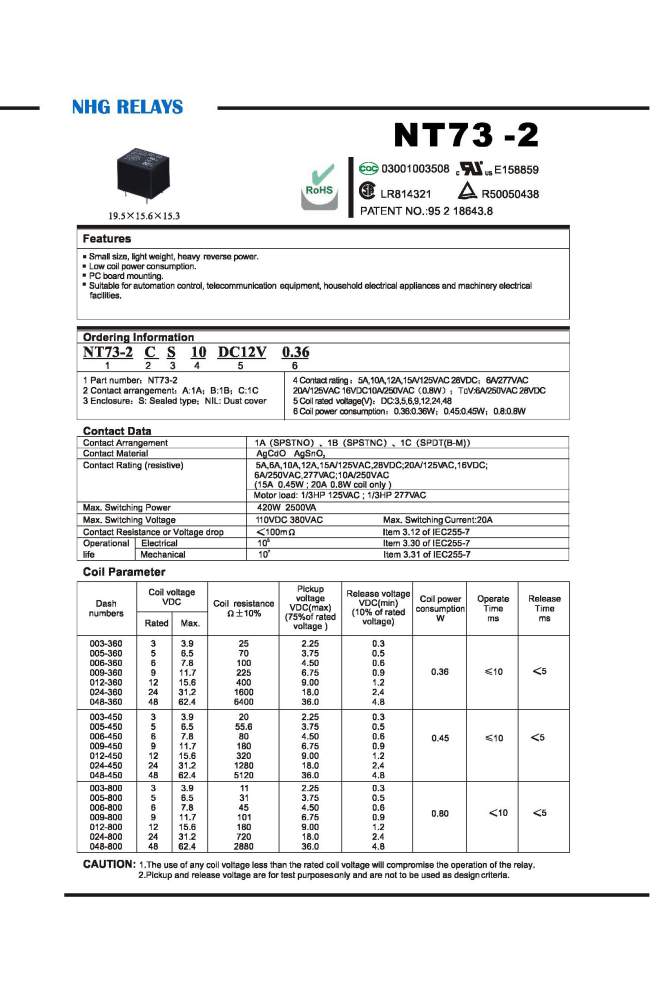

• دیتاشیت

Features

• Small size, light weight, heavy reverse power.
• Low coil power consumption.
• PC board mounting.
• Suitable for automation control, telecommunication equipment, household electrical appliance and machinery electrical facilities.

Contact Data

• Contact Arrangement : 1A, 1B, 1C
• Contact Material : Ag†CdO Ag†SnO2
• Contact Rating (resistive) : 5A,6A,10A,12A,15A/125VAC,28VDC;20A/125VAC,16VDC; 6A/277VAC;10A/250VAC —TUV : 6A/250VAC, 28VDC (15A 0.45W ; 20A 0.8W coil only )
• Max. Switching Power 420W 2500VA
• Max. Switching Voltage 110VDC 380VAC Max. Switching Current:20A
