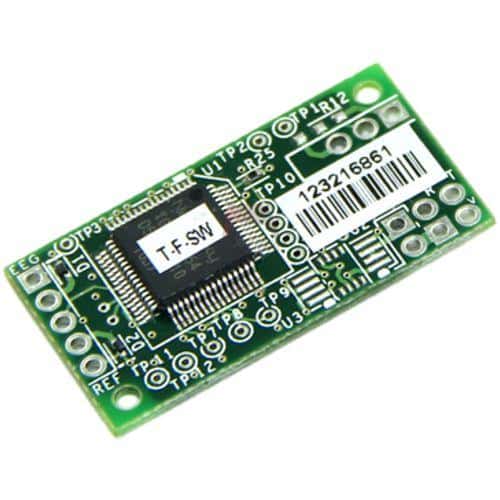

سنسور دریافت سیگنال مغز NeruSKY-TGAM

سنسور دریافت سیگنال مغز NeruSKY-TGAM

سنسور دریافت سیگنال مغز

• دانلود دیتاشیت

TGAM: ThinkGear ASIC Module

• Directly connects to dry electrode (as opposed to conventional medical wet sensors)
• One EEG channel with three contacts: EEG; REF; and GND
• Low power consumption suitable for portable battery-driven applications
• Max power consumption 15mA @ 3.3 V
• Raw EEG data output at 512 bits per second Measures
• Raw brainwave signal
• Processing and output of EEG power spectrums (Alpha, Beta, etc.)
• Processing and output of NeuroSky proprietary eSense meter for Attention, Meditation, and other future meters
• EEG/ECG signal quality analysis (can be used to detect poor contact and whether the device is off the head)
• Eyeblink detection

Specs

• 512 bits per second sampling frequency
• 3-100Hz frequency range
• ESD Protection: 4kV Contact Discharge; 8kV Air Discharge
• Max Power Consumption: 15mA @ 3.3V
• Operating voltage 2.97 ~3.63V

Physical

• Dimensions (Max) 2.79cm x 1.52cm x 0.25cm
• Weight (Max) 130 mg

Configurable Options AC Noise Filter

• 50 Hz
• 60 Hz

UART (serial) standard output interface

• 1200, 9600, 57600 output baud rate
• 8bits
• Parity: none
• Stop Bit: 1
