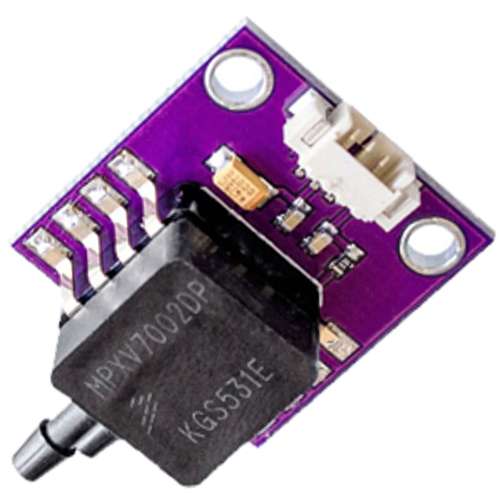

ماژول فشار هوا MPXV7002DP

ماژول فشار هوا MPXV7002DP

ماژول فشار هوا دیفرانسیلی

• دانلود دیتاشیت

Integrated Silicon Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated

The MPXV7002 series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs.

This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.

Features

• INTEGRATED PRESSURE SENSOR -2 to 2 kPa (-0.3 to 0.3 psi) – 0.5 to 4.5 V OUTPUT
• 2.5% Typical Error over +10°C to +60°C with Auto Zero
• 6.25% Maximum Error over +10°C to +60°C without Auto Zero
• Ideally Suited for Microprocessor or Microcontroller-Based Systems
• Thermoplastic (PPS) Surface Mount Package
• Temperature Compensated over +10° to +60°C
• Patented Silicon Shear Stress Strain Gauge
• Available in Differential and Gauge Configurations

Typical Applications

• Hospital Beds
• HVAC
• Respiratory Systems
• Process Control
