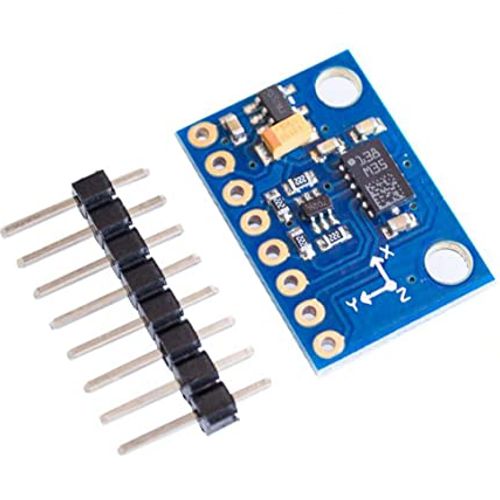

ماژول قطبنما دیجیتال GY-511
ماژول قطبنما دیجیتال GY-511
|
||||
|
Product Description: The LSM303DLHC is a digital 3 axis accelerometer and 3 axis magnetometer with I2C interface. It has full-scale acceleration range of ±2g to ±16g and full scale magnetic field range of ±1.3 to ±8.1 gauss. All the full scale ranges are user selectable. Voltage: 3-5V. I2C serial interface 16 bit data output 3 magnetic field axis and 3 acceleration axis Full scale range of ± 1.3 to ±8.1 magnetic field ±2g/±4g/±8g /±16g user selectable full-scale acceleration ranges Other Features: Embedded temperature sensor · 6D/4D-orientation detection · Embedded FIFO · 2 independent programmable interrupt generators for free-fall and motion detection · Power-down mode / low-power mode Applications: Tilt-compensated compasses · Map rotation · Position detection · Motion-activated functions · Free-fall detection · Click/double-click recognition · Pedometers · Intelligent power-saving for hand held devices · Display orientation · Gaming and virtual reality input devices · Impact recognition and logging · Vibration monitoring and compensation |
