مشخصات فنی آپ امپ
FEATURES Single-supply operation: 2.7 V to 12 V Wide input voltage range Rail-to-rail output swing Low supply current: 300 μA/amp Wide bandwidth: 3 MHz Slew rate: 0.5 V/μs Low offset voltage: 700 μV No phase reversal موارد استفاده آپ امپ APPLICATIONS Industrial process control Battery-powered instrumentation Power supply control and protection Telecommunications Remote sensors Low voltage strain gage amplifiers DAC output amplifiers توضیحات کلی آپ امپ GENERAL DESCRIPTION The OP191, OP291, and OP491 are single, dual, and quad micropower, single-supply, 3 MHz bandwidth amplifiers featuring rail-to-rail inputs and outputs. All are guaranteed to operate from a +3 V single supply as well as ±5 V dual supplies. Fabricated on Analog Devices CBCMOS process, the OPx91 family has a unique input stage that allows the input voltage to safely extend 10 V beyond either supply without any phase inversion or latch-up. The output voltage swings to within millivolts of the supplies and continues to sink or source current all the way to the supplies. Applications for these amplifiers include portable telecommunications equipment, power supply control and protection, and interface for transducers with wide output ranges. Sensors requiring a rail-to-rail input amplifier include Hall effect, piezo electric, and resistive transducers. The ability to swing rail-to-rail at both the input and output enables designers to build multistage filters in single-supply systems and to maintain high signal-to-noise ratios. The OP191/OP291/OP491 are specified over the extended industrial –40°C to +125°C temperature range. The OP191 single and OP291 dual amplifiers are available in 8-lead plastic SOIC surface-mount packages. The OP491 quad is available in a 14-lead PDIP, a narrow 14-lead SOIC package, and a 14-lead TSSOP. |
robelcom_mradmin –

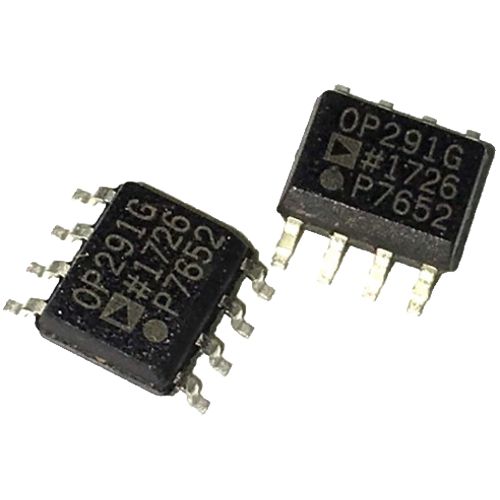

آپ امپ OP291G یک آپ امپ تک منبع ریل به ریل می باشد.
