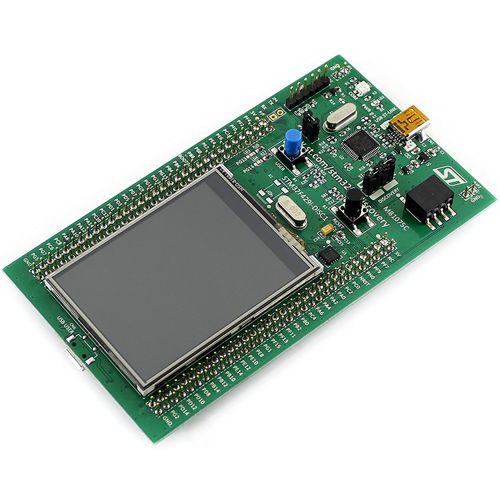

دیسکاوری برد STM32F429I
برد دیسکاوری
STM32F429ZIT6 microcontroller
- Arm ® Cortex ® -M4 core with FPU, 2 MB Flash, 256 KB RAM
- Core frequency max: 180 MHz
- 1 x USB OTG HS
- 1 x USB OTG FS
- 3 x 12-bit ADC
- 2 x 12-bit DAC
- 32-bit and 16-bit timers
- 1 x SDIO, 6 x SPI, 3 x I2C, 2 x I2S, 2 x CAN, 1 x Ethernet, 4 x USART, 1 x SAI
- Camera interface 8-14 bit
- TFT LCD Controller
- TRNG
- FSMC – SRAM / NOR / NAND / CF / SDRAM, LCD parallel 8080/6800
- ART Accelerator ™
- Chrom-ART Accelerator ™
- 2.4 ″ TFT color display QVGA 320 × 240 px, resistive touch panel
- 3-axis MEMS gyroscope I3G4250D
- 64 Mbit SDRAM for TFT display (image buffering)
- Reset button
- User button
- 6 LEDs
- LD1 – USB communication
- LD2 – power supply presence
- LD3 (green), LD4 (red) – user
- USB OTG status indication – LD5 (VBUS), LD6 (Over-Current)
- Connectors on the board
- Goldpins for all I / O ports of the microcontroller
- USB (programmer, serial port VCOM)
- USB OTG
- Power
- Via micro USB
- Outside
- ST-Link / V2-B programmer on the board
- Broad support for different IDE STM32CubeIDE, ™ IAR, Keil ® GCC-based IDEs, Arm ® Mbed ™
- Soldered goldpin pins for I / O pins
