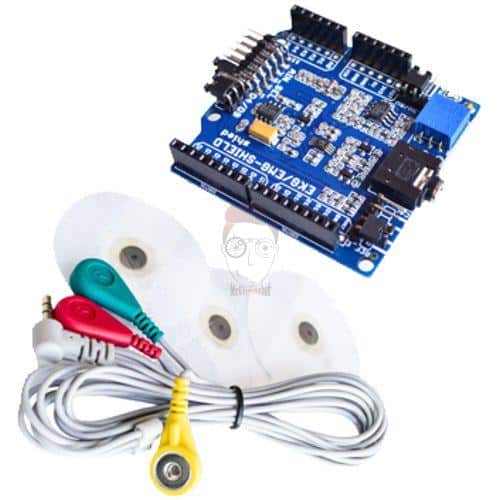

شیلد تشخیص سیگنال قلب،ماهیچه،مغز EMG EKG SHIELD

• دیتاشیت

Features

• Stackable headers up to 6 channels may be stacked and wired to A0-A6 analogue inputs.
• Calibration signal generation by D4/D9 digital output.
• Precise Trimmer potentiometer for calibration.
• Input connector for normal or Active electrodes.
• Works with both 3.3V and 5V Arduino boards.

Hardware

• SHIELD-EKG-EMG schematic in PDF format released under Creative Commons Attribution-Share Alike 3.0 United States License.
• SHIELD-EKG-EMG schematic and board in Eagle format released under Creative Commons AttributionShare Alike 3.0 United States License.

Software

• Electric guru monitoring software.
• Arduino example for EKG capture and interface to Electric Guru for OLIMEXINO-328/Arduino boards
• Maple example for EKG capture and interface to Electric Guru for OLIMEXINO-STM32.
• Pinguino example for EKG capture and interface to Electric Guru for PIC32-PINGUINO/OTG/MX220.
