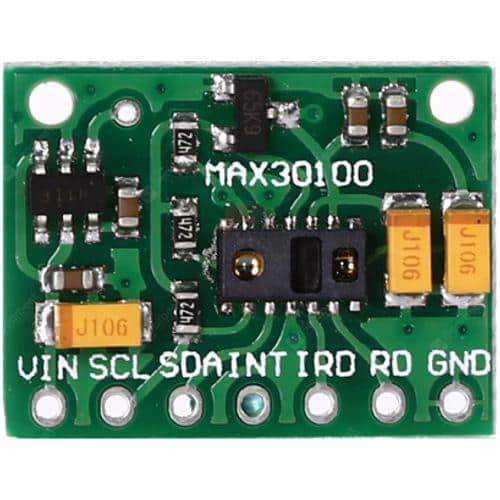

ماژول پالس اکسیمتر و سنسور ضربان قلب MAX30100

ماژول پالس اکسیمتر و سنسور ضربان قلب MAX30100

ماژول پالس اکسیمتر و سنسور ضربان قلب

Benefits and Features

• Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design :
• -Integrated LEDs, Photo Sensor, and High-Performance Analog Front -End
• -Tiny 5.6mm x 2.8mm x 1.2mm 14-Pin Optically Enhanced System-in-Package
• Ultra-Low-Power Operation Increases Battery Life for Wearable Devices :
• -Programmable Sample Rate and LED Current for Power Savings
• -Ultra-Low Shutdown Current (0.7µA, typ)
• Advanced Functionality Improves Measurement Performance :
• -High SNR Provides Robust Motion Artifact Resilience
• -Integrated Ambient Light Cancellation
• -High Sample Rate Capability
• -Fast Data Output Capability

Applications

• Wearable Devices
• Fitness Assistant Devices
• Medical Monitoring Devices

Absolute Maximum Ratings

• VDD to GND : -0.3V to +2.2V
• GND to PGND : -0.3V to +0.3V
• x_DRV, x_LED+ to PGND : -0.3V to +6.0V
• All Other Pins to GND : -0.3V to +6.0V
• Output Short-Circuit Current Duration : Continuous
• Continuous Input Current into Any Terminal : ±20mA
• Continuous Power Dissipation (TA = +70°C)
• OESIP (derate 5.8mW/°C above +70°C) : 464mW
• Operating Temperature Range : -40°C to +85°C
• Soldering Temperature (reflow) : +260°C
• Storage Temperature Range : -40°C to +105°C
