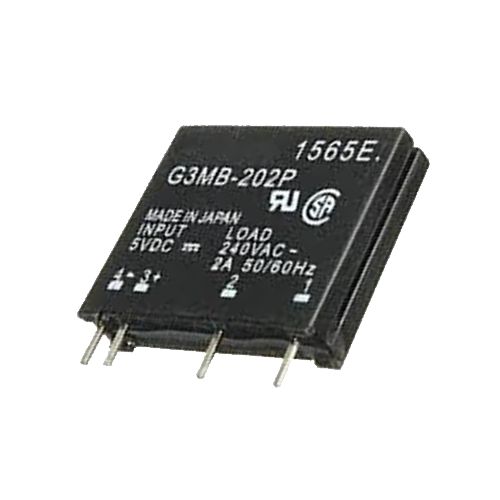

رله 5 ولت 2 آمپر G3MB-202P

رله 5 ولت 2 آمپر G3MB-202P

رله حالت جامد 5 ولت 2 آمپر SSR

کپی

• دیتاشیت

Low cost Subminiature PCB mounting 2 amp Single in-line package (SIP) SSR

• Bottom is approximately 3 times smaller than G3M.
• Low cost “SIP” package switches up to 2A loads.
• Built in Snubber circuit and input resistor as option.
• Two footprints available for design flexibility.
• The G3MB-202PEG-4-DC20MA crosses directly to the Motorola M0C2A-60 series power triac.

Information

• Isolation : Phototriac
• Output terminal pitch : 7.62 mm
• Zero cross : Yes
• Input resistor : Yes
• Built-in snubber circuit :Yes
• Rated output load : 2 A at 100 to 240 VAC
• Rated input voltage : 5 VDC
• Model : G3MB-202P
